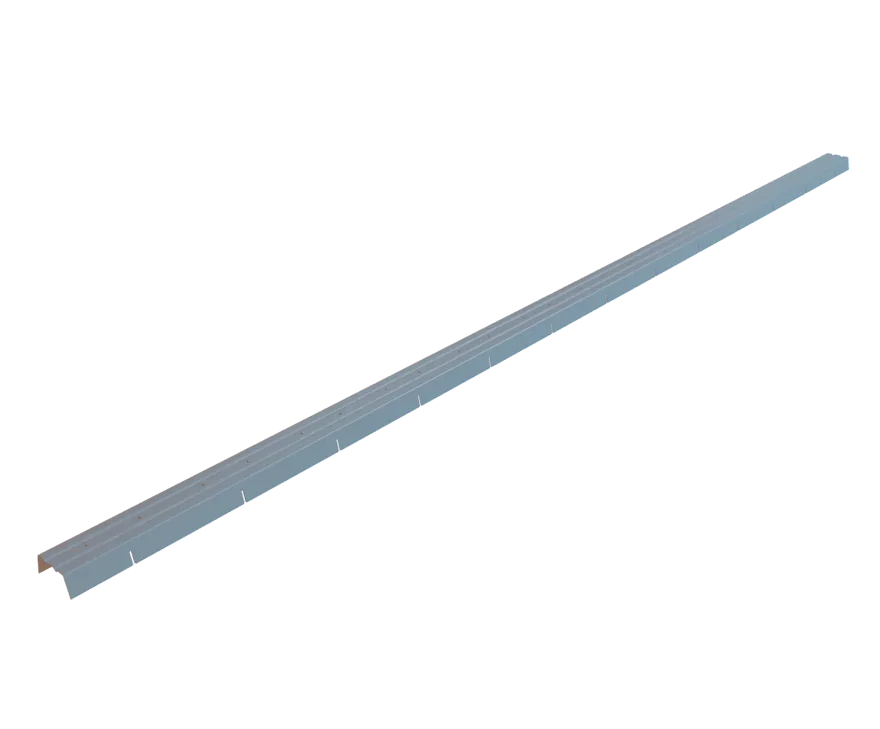

BridgeBar®

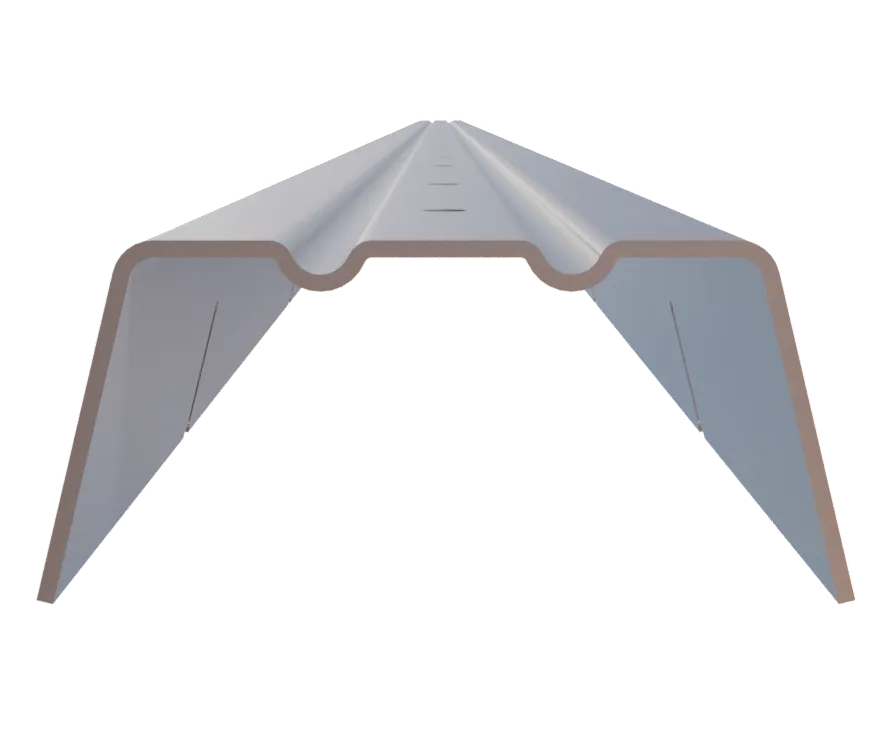

BridgeBar® replaces cold-rolled channel (CRC) for wall bridging. Unique grooves every 4” trap stud web to allow installers to space any type of wall layout. The grooves adjust to various stud thickness to trap the stud web for maximum strength. BridgeBar incorporates stiffeners to resist compressive loads through the plane of the wall. BridgeBar’s standard U-channel shape ensures use through ¾” and 1½” stud punchouts.

Features
  • Fast installation
  • Notches every 4″ accommodate 8″, 12″, 16″, 24″ centers
  • No clamping
  • No welding
  • Load rated assembly
  • 52-inch length allows for 4″ lap at joints for continuous walls
  • Guide holes for placement when BridgeClip® is used
Order Information
Designation Qty/Box Lbs/Box Qty/Skid Lbs/Skid
BB75 50 49 2,000 1,960
BB150 50 70 1,250 1,750



Nomenclature

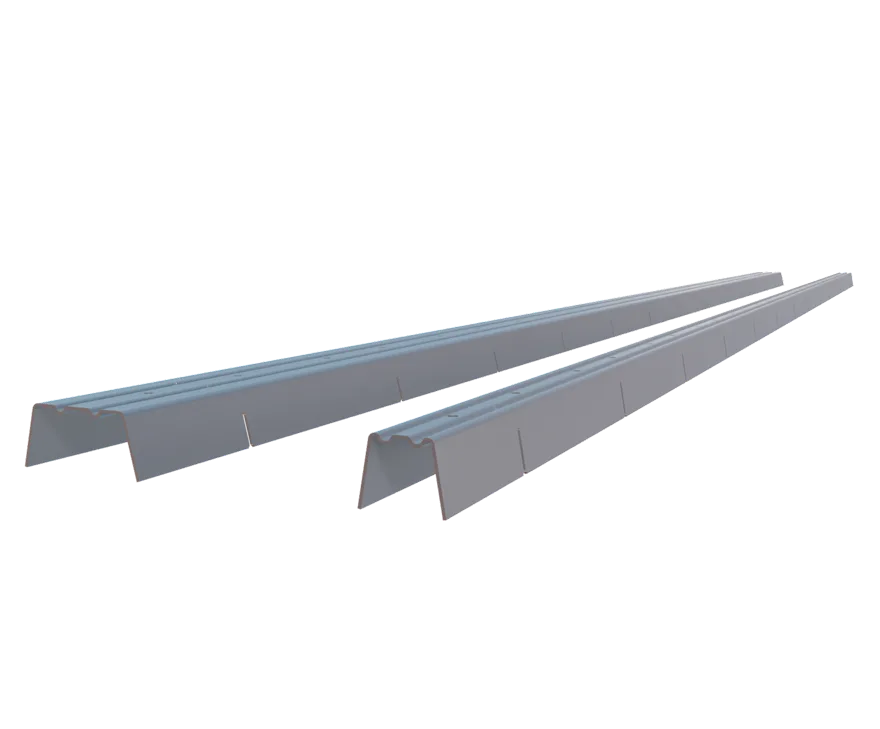

BridgeBar is available in ¾” and 1½” widths. Designations are BB75 and BB150.

Example: Stud with ¾” knockout
Designate: BB75

Material Composition

BB75: ASTM A1003/A1003M Structural Grade 33 (230) Type H, ST33H (ST230H): 33ksi (230MPa) minimum yield strength 45ksi (310MPa) minimum tensile strength, 28mil minimum thickness (22 gauge, 0.0295″ design thickness) with ASTM A653/A653M G60 (Z180) hot dipped galvanized coating.

BB150: ASTM A1003/A1003M Structural Grade 50 (340) Type H, ST50H (ST340H): 50ksi (340MPa) minimum yield strength, 65ksi (450MPa) minimum tensile strength, 33mil minimum thickness (20 gauge, 0.0346″ design thickness) with ASTM A653/A653M G90 (Z275) hot dipped galvanized coating.

Catalogs
TSN’s Product Catalogs are an essential resource for the design of cold formed steel. Developed by Engineers, the catalogs contain design data for members, connectors, and fasteners. BridgeBar® can be found in the following Catalogs:

TSN Cold-Formed Steel Framing Connections Order Catalog

TSN Connections Technical Catalog

TSN Cold-Formed Steel Framing Connections Technical Catalog

TSN Connections Order Catalog

For a full list of our product catalogs, specification sections, inspection checklists, and research reports please click here.

US Patents #6,701,689

BridgeBar® Applications



BridgeBar - Bridging Channel - Application

Wall Bridging Channel

Installation Instructions

  1. Run BridgeBar through stud punchouts.
  2. Locate grooves at bottom of punchout and press down into place.
BridgeBar - Bridging Channel - Installation Lap Joint

Lap Joints

BridgeBar’s 52” length allows for a 4” overlap at joints. Simply fit one end over the other and line up the guide holes for quick & easy placement of screw(s). Joint locations maintain stud spacing as designed through length of the wall system.

Allowable Loads

Effective Section Properties & Allowable Loads
Section
Section
BB75
BB150
Effective Section Properties & Allowable Loads
Minimum Thickness (in)
Minimum Thickness (in)
0.028
0.0329
Effective Section Properties & Allowable Loads
Design Thickness (in)
Design Thickness (in)
0.0295
0.0346
Effective Section Properties & Allowable Loads
Yield Strength (ksi)
Yield Strength (ksi)
33
50
Effective Section Properties & Allowable Loads
Area (in2)
Area (in2)
0.031
0.068
Effective Section Properties & Allowable Loads
Ix (in4)
Ix (in4)
0.0021
0.0174
Effective Section Properties & Allowable Loads
Sx (in3)
Sx (in3)
0.006
0.023
Effective Section Properties & Allowable Loads
Rx (in)
Rx (in)
0.261
0.506
Effective Section Properties & Allowable Loads
Iy (in4)
Iy (in4)
0.0002
0.0007
Effective Section Properties & Allowable Loads
Ry (in)
Ry (in)
0.104
Effective Section Properties & Allowable Loads
Sxe (in3)
Sxe (in3)
0.006
0.023
Effective Section Properties & Allowable Loads
Ma (X-axis) in-kips (ft-lb)
Ma (X-axis) in-kips (ft-lb)
0.11 (9.3)
0.69 (57.9)
Effective Section Properties & Allowable Loads
12" o.c.
Ae (in2)
N/A
0.079
Effective Section Properties & Allowable Loads
12" o.c.
Pa (lbs)
N/A
1,459
Effective Section Properties & Allowable Loads
16" o.c.
Ae (in2)
N/A
0.081
Effective Section Properties & Allowable Loads
16" o.c.
Pa (lbs)
N/A
1,172
Effective Section Properties & Allowable Loads
24" o.c.
Ae (in2)
N/A
0.081
Effective Section Properties & Allowable Loads
24" o.c.
Pa (lbs)
N/A
566

Notes:

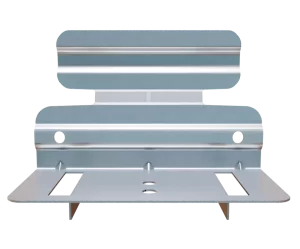

  1. Use BridgeClip® for a quick & easy method of securing BridgeBar to stud (when required)
  2. Resists compressive loads through the plane of the wall
  3. Use through ¾” and 1½” stud punchouts.
  4. Gross section properties are calculated based on the minimum dimensions of the cross section.
  5. Effective section properties and allowable loads for BridgeBar are calculated based on AISI S100-2007 Specification.
  6. Effective section modulus (Sxe) is calculated based on the minimum dimensions of the cross section.
  7. Effective area (Ae) and allowable axial load (Pa) are calculated based on the average dimensions of the cross section.
BridgeBar - BB75 Section Properties

BB75 Section Properties

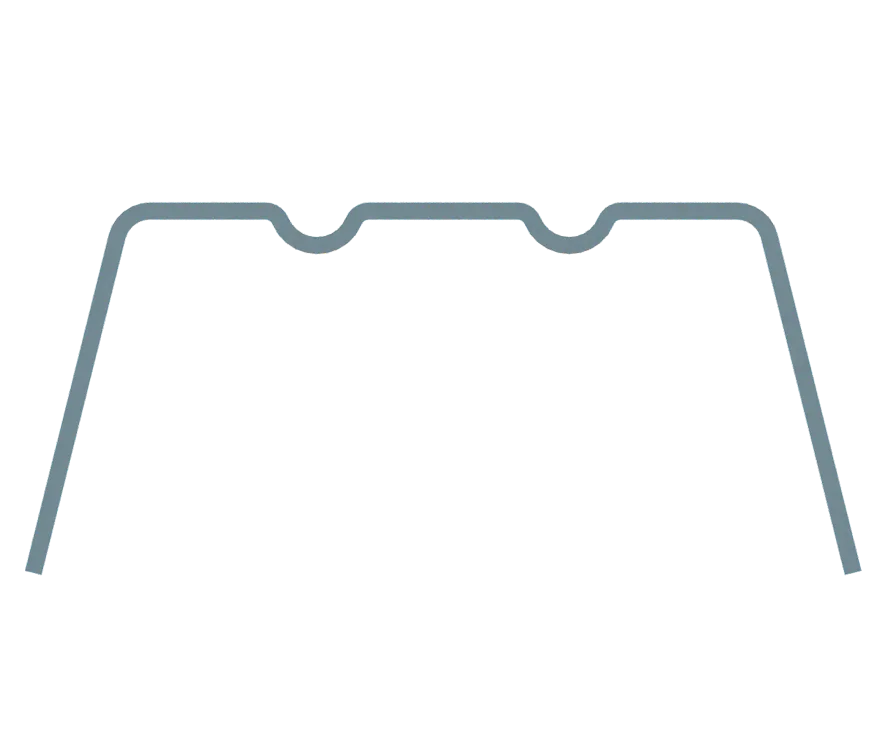

BridgeBar - BB150 Section Properties

BB150 Section Properties

Load Direction

Allowable Screw Shear

When loads require attachment of BridgeBar to stud, consider the screw shear allowables below for connection of BridgeClip to stud and BridgeBar.

Section
Section
BB150
Design Thickness (in)
Design Thickness (in)
0.0346
Yield Strength (ksi)
Yield Strength (ksi)
50
Allowable Shear/Screw
#8 Screw (lbs)
237
Allowable Shear/Screw
#10 Screw (lbs)
255
