VertiClip® SLD w/3″ Slots

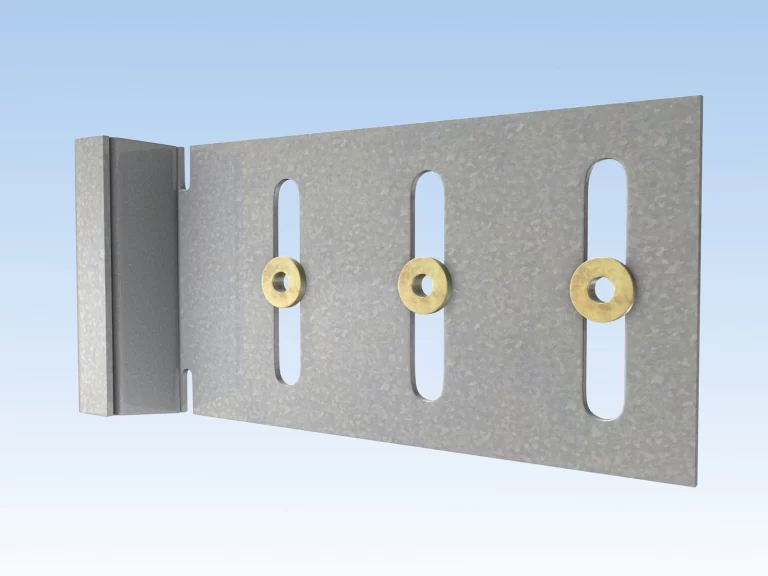

This slide angle clip for drywall is used to connect metal studs at the head condition (top of wall) to the deck or primary structure while allowing for a total vertical deflection of up to 3” (2” up & 1″ down). TSN’s patented Step Bushing Technology provides an anti-friction and anti-seizure connection between the clip and the stud web surface.

Features
  • 3″ deflection
  • Load-rated positive mechanical attachment at each stud
  • Patented Step Bushing Technology provides friction-free motion for smooth vertical deflection
  • Eliminates loose friction-held assemblies, heavy deep-leg track, & top row of wall bridging/strapping
  • Load-rated #8 screws provided for vertical deflection connection to stud web
  • Manufactured with certified, 50ksi, 33mil, G90 cold-formed steel

* VertiClip SLD is a component in VertiTrack® VTD, TSN’s pre-assembled deflection track.

Order Information

Qty/Box

SLD362/400,s3lg,b2d

200

SLD600,s3lg,b2d

100

SLD800,s3lg,b2d

50

Lbs/Box

SLD362/400,s3lg,b2d

45

SLD600,s3lg,b2d

40

SLD800,s3lg,b2d

25

Qty/Skid

SLD362/400,s3lg,b2d

9,000

SLD600,s3lg,b2d

4,500

SLD800,s3lg,b2d

4,500

Lbs/Skid

SLD362/400,s3lg,b2d

2,025

SLD600,s3lg,b2d

1,800

SLD800,s3lg,b2d

2,250

Nomenclature:
VertiClip SLD is designated by type (SLD), followed by stud depth in inches multiplied by
100.

Example: 6″ stud
Designate: VertiClip SLD600

Material Composition

ASTM A1003/A1003M Structural Grade 50 (340) Type H, ST50H (ST340H): 50ksi (340MPa) minimum yield strength, 65ksi (450MPa) minimum tensile strength, 33mil minimum thickness (20 gauge, 0.0346” design thickness) with ASTM A653/A653M G60 (Z180) hot dipped galvanized coating.

Catalogs

TSN’s Product Catalogs are an essential resource for the design of cold formed steel. Developed by Engineers, the catalogs contain design data for members, connectors, and fasteners. VertiClip® SLD can be found in the following Catalogs:

TSN Cold-Formed Steel Framing Connections Order Catalog

TSN Connections Technical Catalog

TSN Cold-Formed Steel Framing Connections Technical Catalog

TSN Connections Order Catalog

For a full list of our product catalogs, specification sections, inspection checklists, and research reports please click here.

US Patents #5,467,566 & #5,906,080

VertiClip® SLD w/3″ Slots Downloads

VertiClip® SLD Applications

VertiClip SLD w/3″ slots is used for interior or light exterior head of wall connections that require larger deflection allowances.  The attachment of VertiClip SLD w/3″ slots to the primary structure may be made with screws or PAFs and is dependent upon the base material (steel or concrete) and the design configuration.

MasterClip VLB Hybrid LSF Connector for Vertical Deflection

3" Deflection -Interior or Exterior Head of Wall

Installation Instructions

  1. Attach standard leg runner track to deck.
  2. Attach VertiClip SLD to deck (through track).
  3. Attach VertiClip through Step Bushings to wall studs with self-drilling screws provided.

Allowable Loads

18mil (25ga), 33ksi Stud
27mil (22ga), 33ksi
30mil (20ga), 33ksi Drywall Stud
33mil (20ga), 33ksi Structural Stud
33mil (20ga), 50ksi Stud
43mil (18ga), 33ksi Stud
43mil (18ga), 50ksi Stud
54mil (16ga), 33ksi Stud
54mil (16ga), 50ksi Stud
Maximum Allowable Clip Load
VertiClip® SLD w/ 3" Deflection - Recommended Allowable Load (lbs): F2 Load Direction
SLD362, s3lg,b2d

w/2 #8 Screws
132
185
185
185
185
185
185
185
185
185
VertiClip® SLD w/ 3" Deflection - Recommended Allowable Load (lbs): F2 Load Direction
SLD600, s3lg,b2d

w/2 #8 Screws
132
242
242
242
242
242
242
242
242
242
VertiClip® SLD w/ 3" Deflection - Recommended Allowable Load (lbs): F2 Load Direction
SLD800, s3lg,b2d

w/3 #8 Screws
132
243
251
251
251
251
251
251
251
251

Load Table Notes:

  • VertiClip SLD s3lg, b2d is designed to support horizontal loads, and should not be used in axial load-bearing walls.
  • Allowable loads have not been increased for wind, seismic, or other factors.
  • Meets IBC criteria for light steel framing.  Factor of Safety calculated according to ICC-ES AC261 and Chapter K of AISI S100.
  • Tests performed with with bushings centered in the 3″ slots.
  • The standard bushing placement is 2″ from the top of the slot an allows the structure to settle 1/2″ prior to typical service.
  • Total vertical deflection of up to 3″ (1-1/2″ up and 1-1/2″ down).
  • #8 screws are provided with each step bushing for attachment to the stud web.
  • Fasten within 3/4″ of the angle heel (centerline of the 1-1/2″ leg) to minimize eccentric load transfer.
  • For LRFD strengths contact TSN technical services.
