DriftClip® DSLB

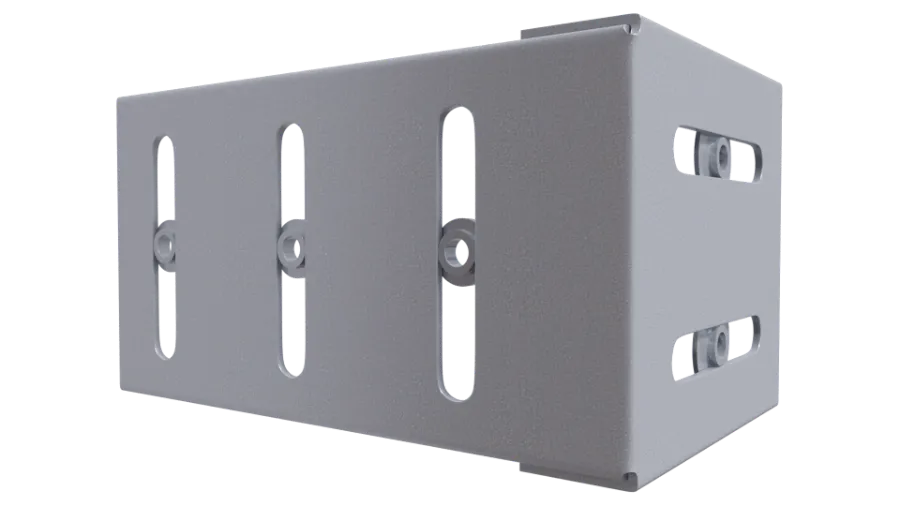

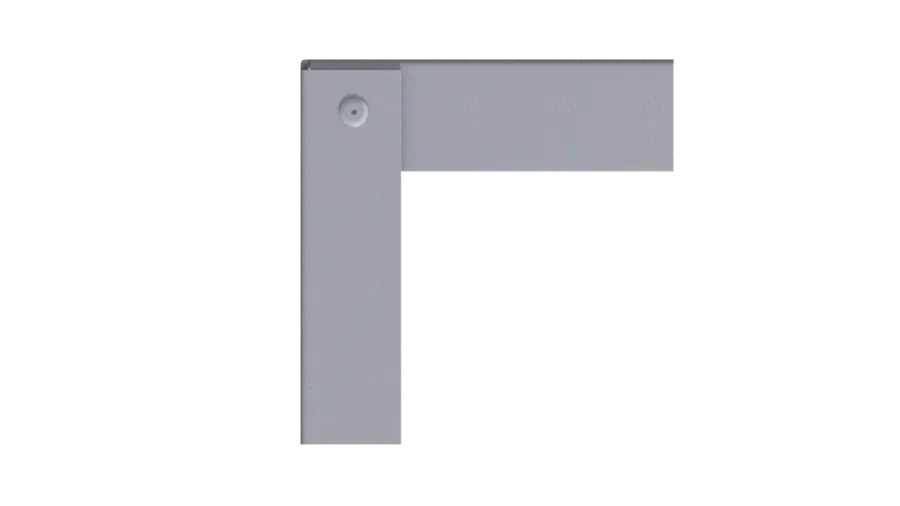

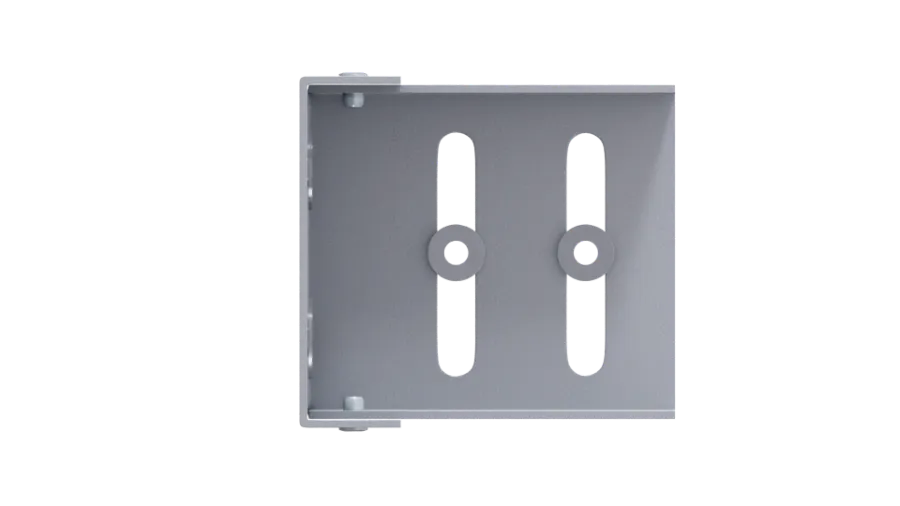

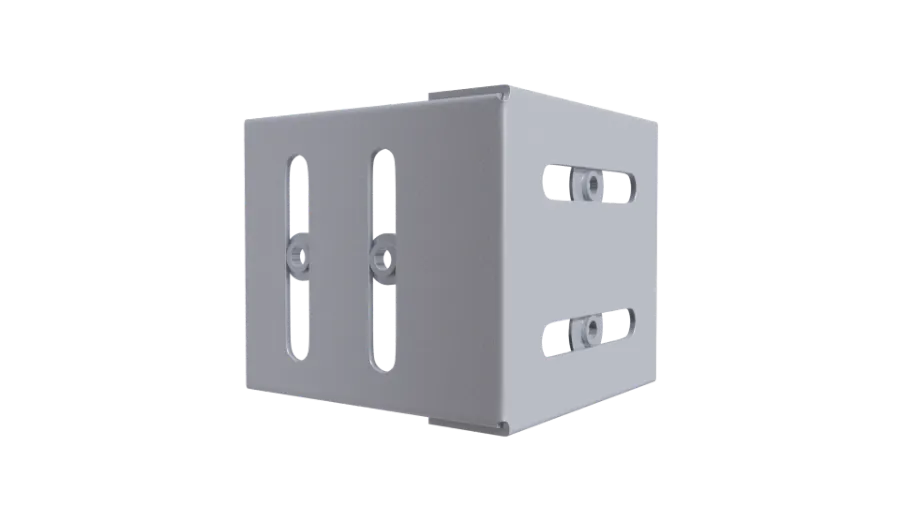

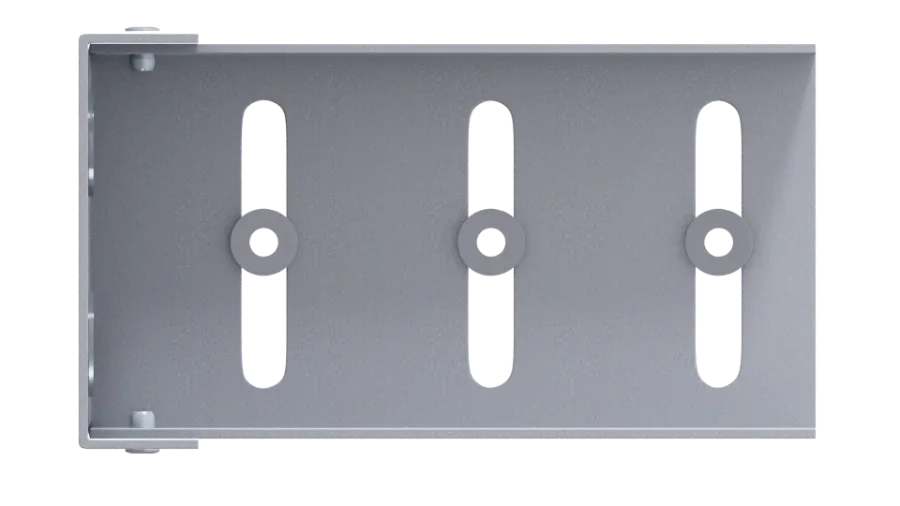

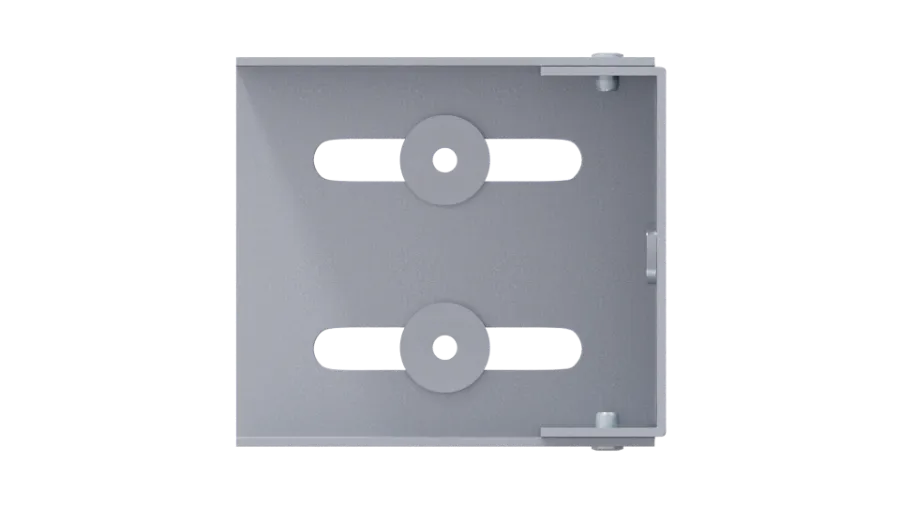

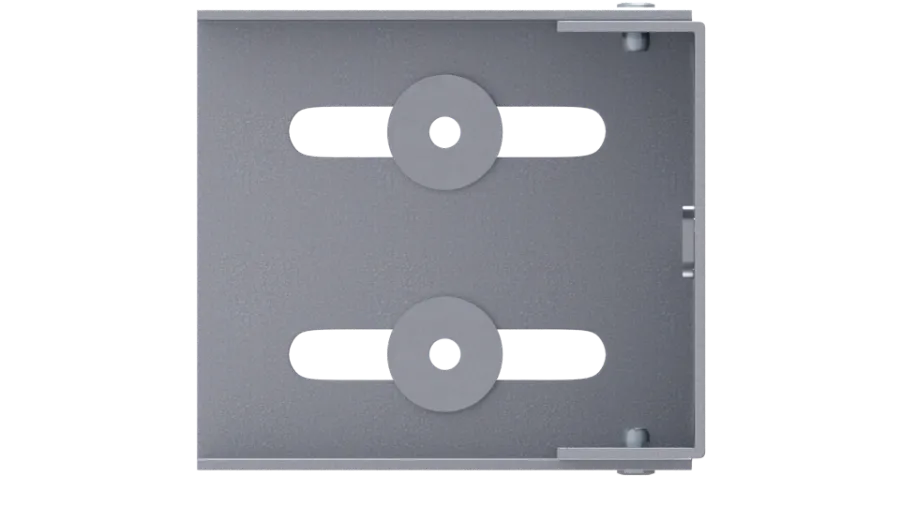

This drift slide angle is used to connect exterior cold-formed steel curtain wall studs to the slab, bypassing the primary structure, while allowing for vertical deflection up to 2” vertical deflection (1” up and down) and 2” lateral drift (1” left and right-in-plane). TSN’s patented Step Bushing Technology provides an anti-friction and anti-seizure connection between the clip and both the stud web surface & track.
Features
- ICC-ES Approved, report #ESR-2049
- If more than 2” lateral drift is required, contact TSN engineering for a custom solution.
- Load-rated positive mechanical attachment at each stud
- Patented Step Bushing Technology provides friction-free motion for smooth vertical deflection
- Eliminates loose friction-held assemblies, heavy deep-leg track, & top row of wall bridging/strapping
- Load-rated #12 screws provided for vertical deflection connection to stud web
- Manufactured with certified, 50ksi, 97mil, G90 cold-formed steel
Order Information
Qty/Box
DSLB362/400
DSLB362/400-CA
DSLB600
DSLB600-CA
DSLB800
DSLB800-CA
Lbs/Box
DSLB362/400
DSLB362/400-CA
DSLB600
DSLB600-CA
DSLB800
DSLB800-CA
Qty/Skid
DSLB362/400
DSLB362/400-CA
DSLB600
DSLB600-CA
DSLB800
DSLB800-CA
Lbs/Skid
DSLB362/400
DSLB362/400-CA
DSLB600
DSLB600-CA
DSLB800
DSLB800-CA
Nomenclature:
DriftClip DSLB is classified by multiplying stud depth by 100.*
Example:6” stud depth
Designate:<DriftClip® DSLB600.
* Parts with the designation “-CA” on the end of the part name includes a special bushing available to allow connection to the side of the concrete slab using two ¼” concrete screw anchors.
** If more than 2” lateral drift is required, contact TSN engineering.
Material Composition
Catalogs
|
|
For a full list of our product catalogs, specification sections, inspection checklists, and research reports please click here.
DriftClip® DSLB Downloads
DriftClip® DSLB Applications
The attachment of DriftClip DSLB to the primary structure may be made with PAFs, screws, or bolt anchors depending on the base material (steel or concrete) and the design configuration. The step bushings used for attachment to structure are designed for use with ¼” maximum diameter fasteners. Designing this connection is the responsibility of the Structural Engineer of Record, and a minimum of two fasteners must be used.

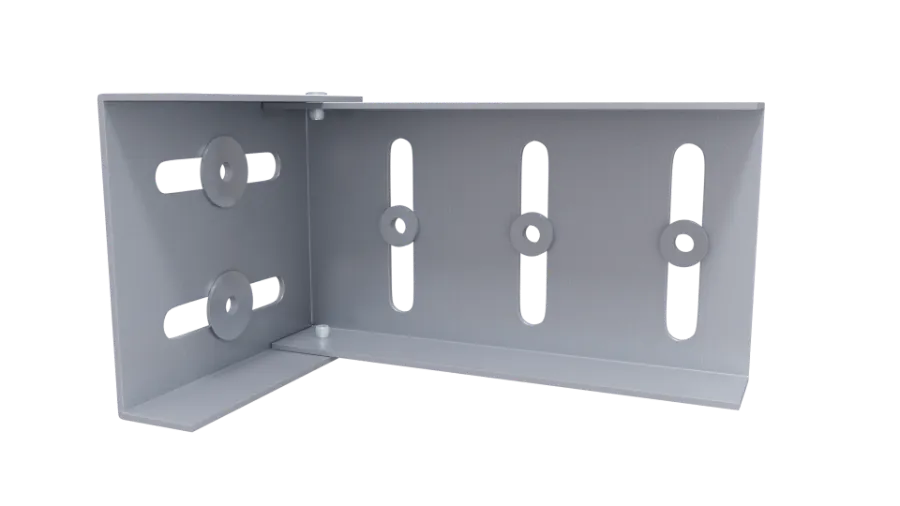

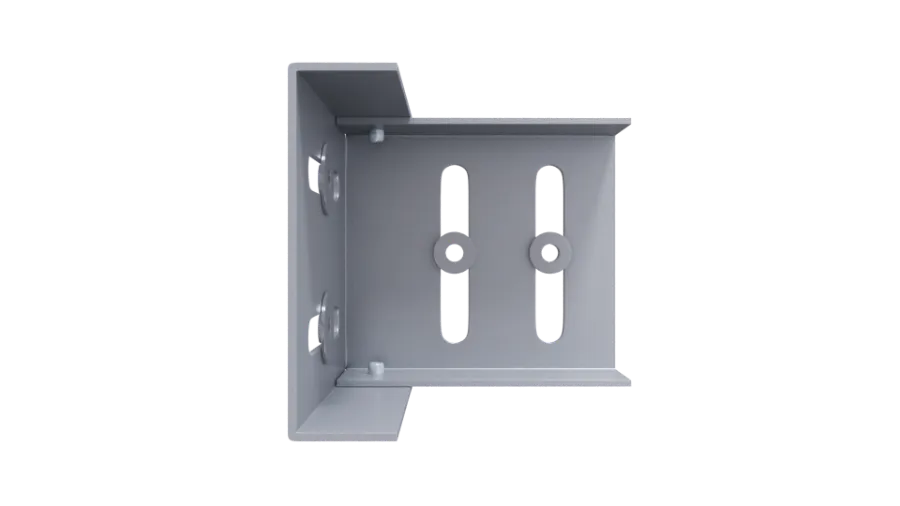

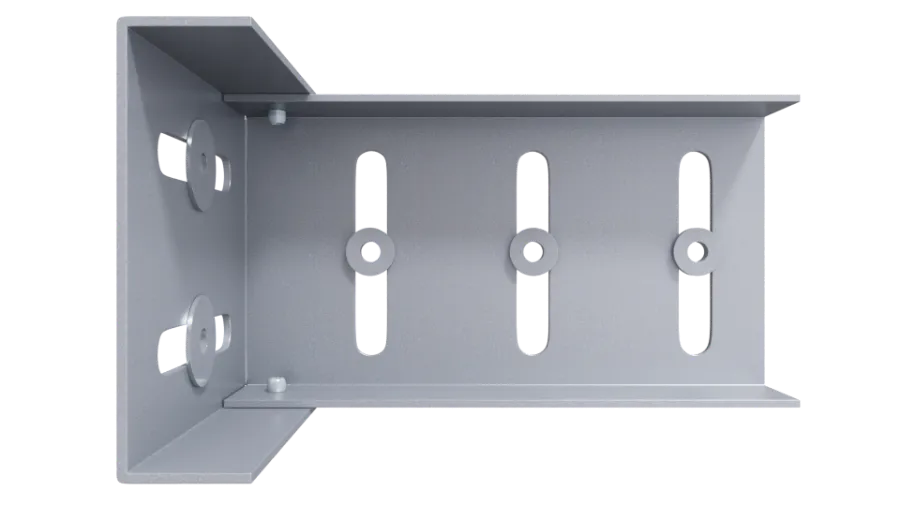

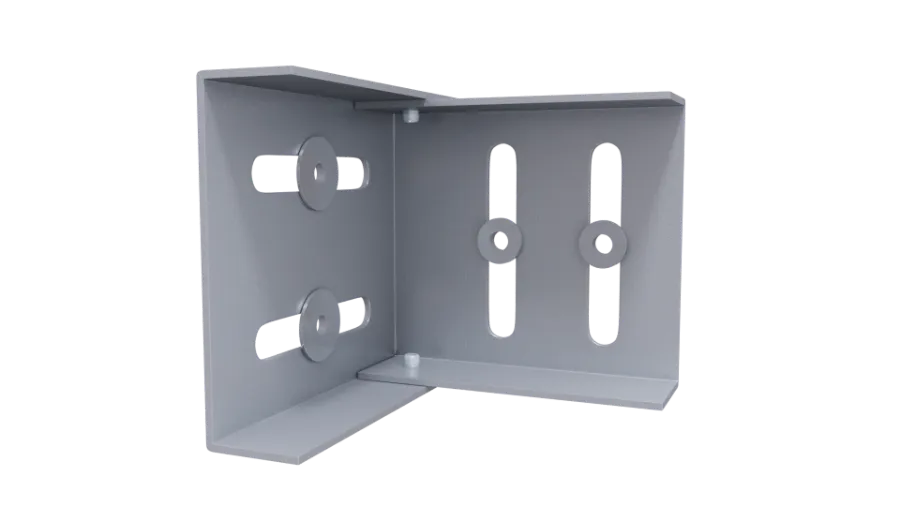

DSLB 600/800 Clip Configuration for a Drift Connection at the Exterior Slab Bypass
Installation Instructions
- Attach DriftClip DSLB to structure with specified fasteners through step bushings.
- Attach to stud with #12 provided screws through step bushings.
Allowable Loads
2 Screws
2 Screws
3 Screws2 Screws
2 Screws
3 ScrewsNotes:
- Design loads are for attachment of DriftClip DSLB to stud only.
- Allowable loads have not been increased for wind, seismic, or other factors.
- DriftClip DSLB allows up to 2″ of vertical deflection (1″ up and 1″ down), and 2″ of lateral drift (1″ left and 1″ right) in plane. Deflection requirements greater than 2″ of lateral drift are available.
- #12 screws are provided for each step bushing attachment to studs. Load requirements do not always require the use of a third screw.
- Attachment of structure to be engineered by others. As a design reference for the structure attachment, reference AISI S100 or screw manufacturers published data for allowable loads for screw fasteners of 1/4″-20 size with various plate thicknesses.
- One row of bridging is recommended at a maximum distance of 18” from DriftClip to resist torsional eff ects.
- For LRFD strengths contact TSN technical services.
Load Direction

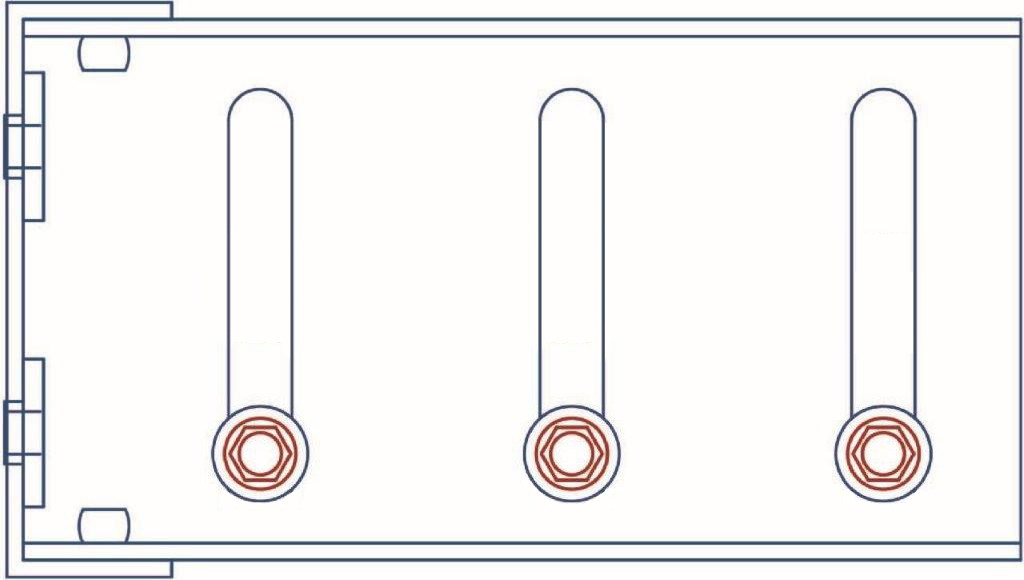

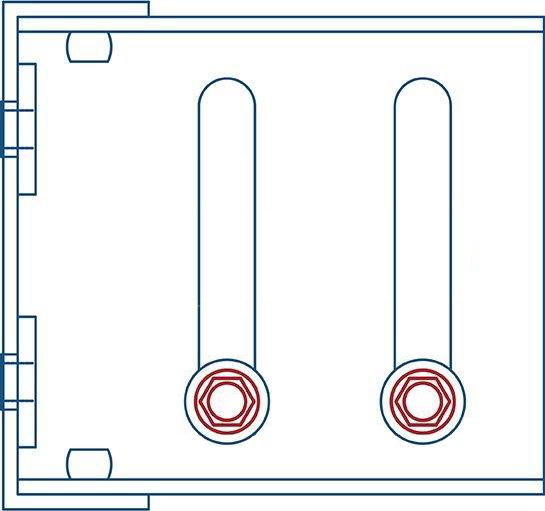

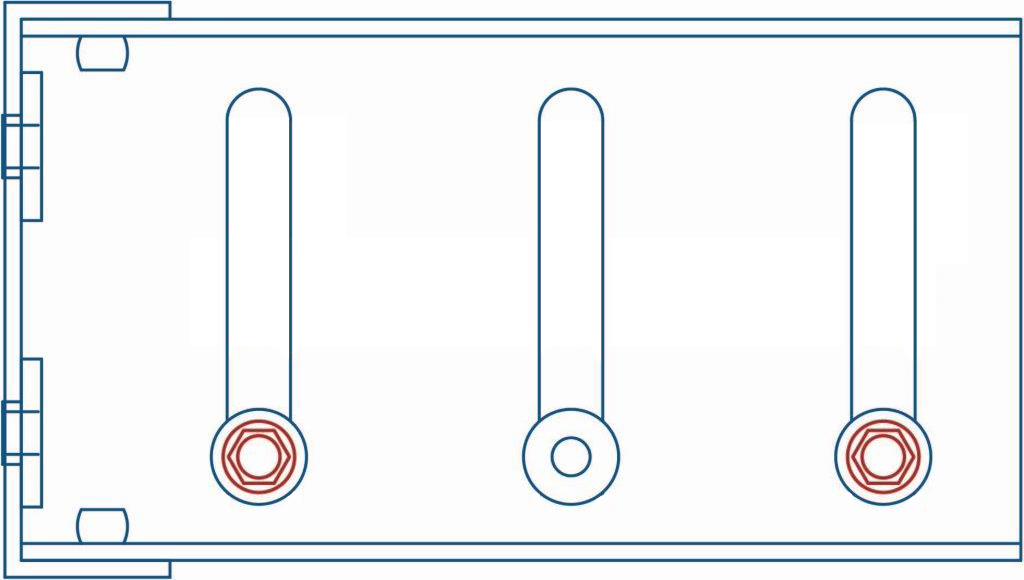

Screw Pattern 1
Screw Pattern 2
Allowable Screw Pullout
* Limited by the allowable F2 loads shown in the Allowable Loads table.
