DriftClip® DSLD

This drift slide angle is used to connect exterior cold-formed steel curtain wall studs to the primary structure at the head of wall, while allowing for up to 2” vertical deflection (1” up and down) and 2” lateral drift (1” left and right-in-plane). TSN’s patented Step Bushing Technology provides an anti-friction and anti-seizure connection between the clip and both the stud web surface & track.

Features
  • ICC-ES Approved, report #ESR-2049
  • If more than 2” lateral drift is required, contact TSN engineering for a custom solution.
  • Load-rated positive mechanical attachment at each stud
  • Patented Step Bushing Technology provides friction-free motion for smooth vertical deflection
  • Eliminates loose friction-held assemblies, heavy deep-leg track, & top row of wall bridging/strapping
  • Load-rated #12 screws provided for vertical deflection connection to stud web
  • Manufactured with certified, 50ksi, 33 mil, G90 cold-formed steel
Order Information
Qty/Box
DSLD362/400
100
DSLD600
50
DSLD800
50
Lbs/Box
DSLD362/400
41
DSLD600
34
DSLD800
46
Qty/Skid
DSLD362/400
4,500
DSLD600
2,250
DSLD800
2,250
Lbs/Skid
DSLD362/400
1,845
DSLD600
1,530
DSLD800
2,070

Nomenclature:
DriftClip DSLD is classified by multiplying stud depth by 100.

Example:6″ stud depth
Designate: DriftClip® DSLD600
* If more than 2” lateral drift is required, contact TSN engineering.
** Three screws & step bushings are available for attachment to stud in 6″ sizes and higher. Specify that 3 slots are needed when placing order.

Material Composition
ASTM A1003/A1003M Structural Grade 50 (340) Type H, ST50H (ST340H): 50ksi (340MPa) minimum yield strength, 65ksi (450MPa) minimum tensile strength, 33mil minimum thickness (20 gauge, 0.0346” design thickness) with ASTM A653/A653M G60 (Z180) hot dipped galvanized coating.
Catalogs
TSN’s Product Catalogs are an essential resource for the design of cold formed steel. Developed by Engineers, the catalogs contain design data for members, connectors, and fasteners. DriftClip® DSLD can be found in the following Catalogs:

TSN Cold-Formed Steel Framing Connections Order Catalog

TSN Connections Technical Catalog

TSN Cold-Formed Steel Framing Connections Technical Catalog

TSN Connections Order Catalog

For a full list of our product catalogs, specification sections, inspection checklists, and research reports please click here.

US Patents #6,612,087

DriftClip® DSLD Downloads

DriftClip® DSLD Applications

The attachment of DriftClip DSLD to the primary structure utilizes step bushings designed for #8 (0.164″) screws. Designing this connection is the responsibility of the Structural Engineer of Record, and a minimum of two fasteners must be used.

DriftClip DSLS - Application - Drift Slide Angle - Interior Head of Wall

Drywall Head of Wall Drift Connection

Installation Instructions

  1. Attach track to structure with required fasteners.
  2. Attach DriftClip DSLD to structure with required fasteners through each Step Bushing.
  3. Attach DriftClip DSLD to stud with provided #8 screws through each Step Bushing.

Allowable Loads

33mil (20ga), 33ksi Stud
33mil (20ga), 50ksi Stud
43mil (18ga), 33ksi Stud
43mil (18ga), 50ksi Stud
54mil (16ga), 33ksi Stud
54mil (16ga), 50ksi Stud
68mil (14ga), 50ksi Stud
97mil (12ga), 50ksi Stud
Maximum Allowable Clip Load
DriftClip® DSLD, Recommended Allowable Load (lbs): F2

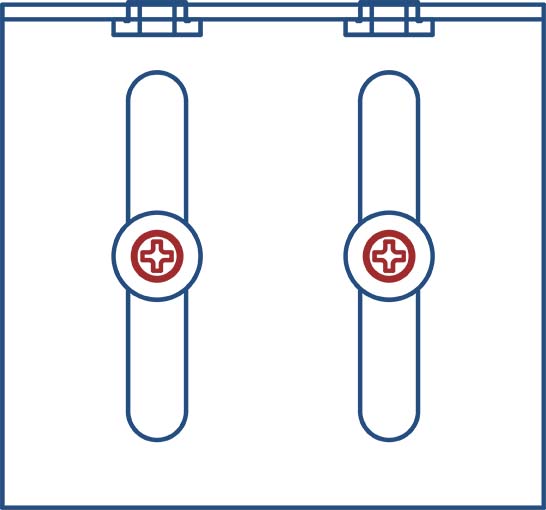

Fastener Pattern 1
DSLD362 w/2 #8 Screws
70
70
70
70
70
70
70
70
70
DriftClip® DSLD, Recommended Allowable Load (lbs): F2

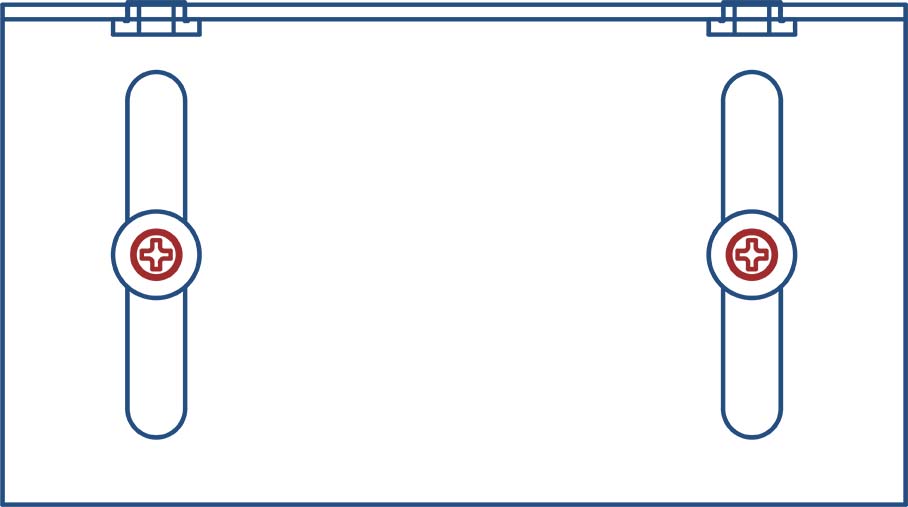

Fastener Pattern 1
DSLD600 w/2 #8 Screws
132
178
178
178
178
178
178
178
178
DriftClip® DSLD, Recommended Allowable Load (lbs): F2

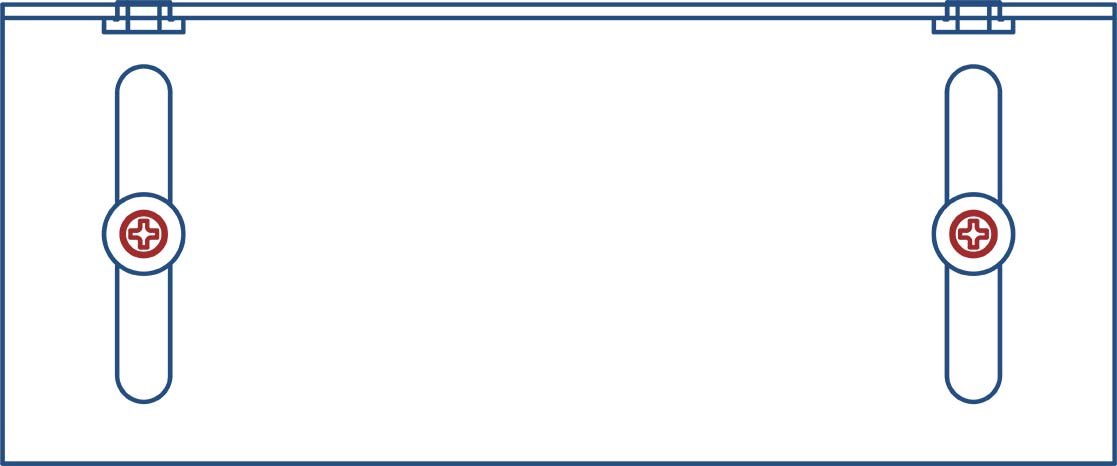

Fastener Pattern 1
DSLD800 w/2 #8 Screws
132
199
199
199
199
199
199
199
199
DriftClip® DSLD, Recommended Allowable Load (lbs): F2
Fastener Pattern 2
DSLD362 w/2 #8 Screws
27
27
27
27
27
27
27
27
27
DriftClip® DSLD, Recommended Allowable Load (lbs): F2
Fastener Pattern 2
DSLD600 w/2 #8 Screws
107
107
107
107
107
107
107
107
107
DriftClip® DSLD, Recommended Allowable Load (lbs): F2
Fastener Pattern 2
DSLD800 w/2 #8 Screws
132
183
183
183
183
183
183
183
183

Load Table Notes

  • Design loads are for attachment of DriftClip DSLD to stud only.
  • Allowable loads have not been increased for wind, seismic, or other factors.
  • DriftClip DSLD allows up to 2″ of vertical deflection (1″ up and 1″ down), and 2″ of lateral drift (1″ left and 1″ right) in plane. Deflection requirements greater than 2″ of lateral drift are available.
  • #8 screws are provided for each step bushing attachment to studs.
  • Attachment of structure to be engineered by others.
  • For LRFD strengths contact TSN technical services.
DriftClip DSLD - Drift Slide Clip - Load Directions

Load Direction

DriftClip DSLD - Screw Pattern 1

Screw Pattern 1

DriftClip DSLD - Screw Pattern 2

Screw Pattern 2
