StiffClip® LS

The StiffClip® LS series is to be utilized when connecting framing members in various applications, the most common being connecting spandrel wall studs to structure. StiffClip LS resists axial tension and compression loads. Long lengths greater than 20” incorporate a stiffening lip to increase compressive strength.

Features
  • Various lengths allow flexibility
  • Eliminates shims and scabs to accommodate stud tolerance from structure in spandrel walls
  • Manufactured from mill certified steel
Order Information
Designation Qty/Box Lbs/Box Qty/Skid Lbs/Skid
LS1000 50 49 2,250 2,205
LS1200 50 55 2,250 2,475
LS1500 50 72 1,500 2,160
LS2000 25 49 1,500 2,940



Nomenclature

StiffClip LS is available in various lengths. To calculate length for spandrel wall connectors, add stud depth, 3” for attachment to steel (5.5” for attachment to concrete), and the distance of construction tolerance. For other applications, simply designate length (in.) multiplied by 100.

Example: 6” stud, 4” attachment to structure, 2” tolerance (6+4+2=12)
Designate: StiffClip® LS1200.

Material Composition
ASTM A1003/A1003M Structural Grade 50 (340) Type H, ST50H (ST340H): 50ksi (340MPa) minimum yield strength, 65ksi (450MPa) minimum tensile strength, 68mil minimum thickness (14 gauge, 0.0713” design thickness) with ASTM A653/A653M G90 (Z275) hot dipped galvanized coating.
Catalogs
TSN’s Product Catalogs are an essential resource for the design of cold formed steel. Developed by Engineers, the catalogs contain design data for members, connectors, and fasteners. StiffClip® LS can be found in the following Catalogs:

TSN Cold-Formed Steel Framing Connections Order Catalog

TSN Connections Technical Catalog

 TSN Cold-Formed Steel Framing Connections Technical Catalog

TSN Connections Order Catalog

For a full list of our product catalogs, specification sections, inspection checklists, and research reports please click here.

StiffClip LS

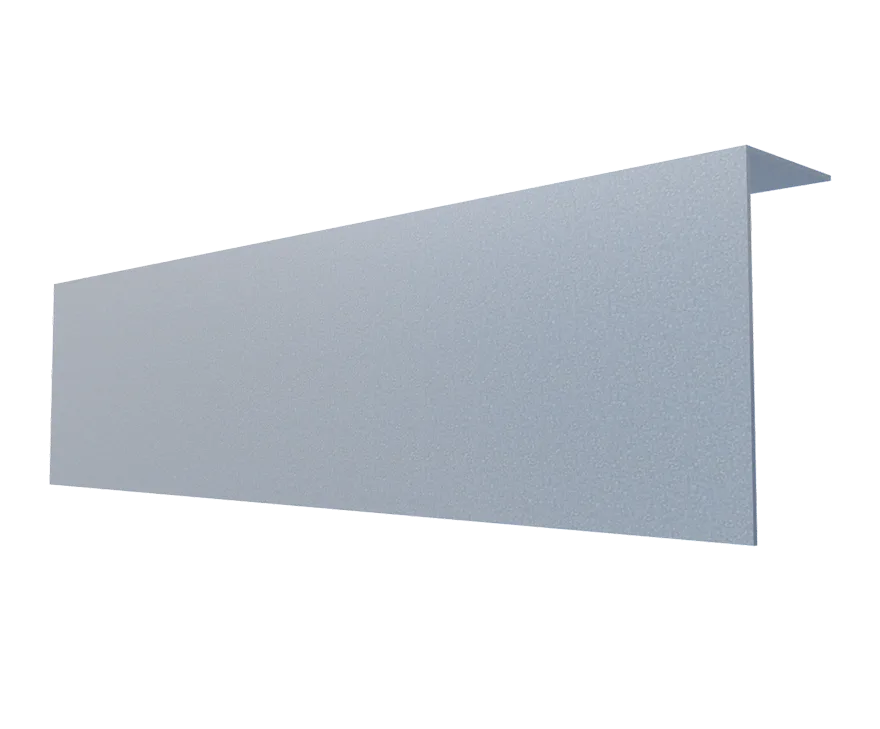

StiffClip LS - Back

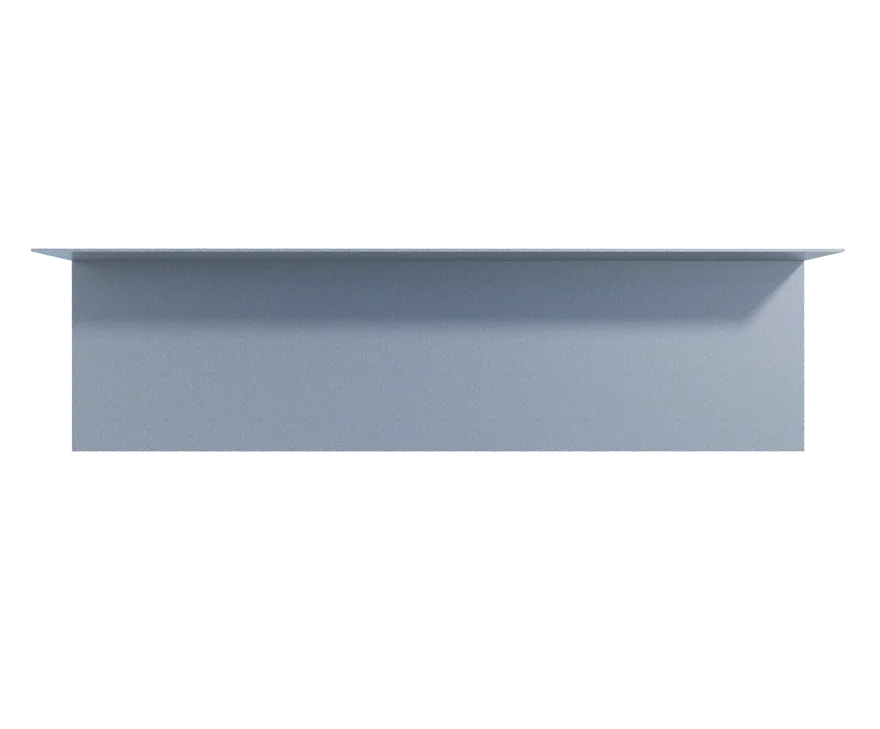

StiffClip LS - Front

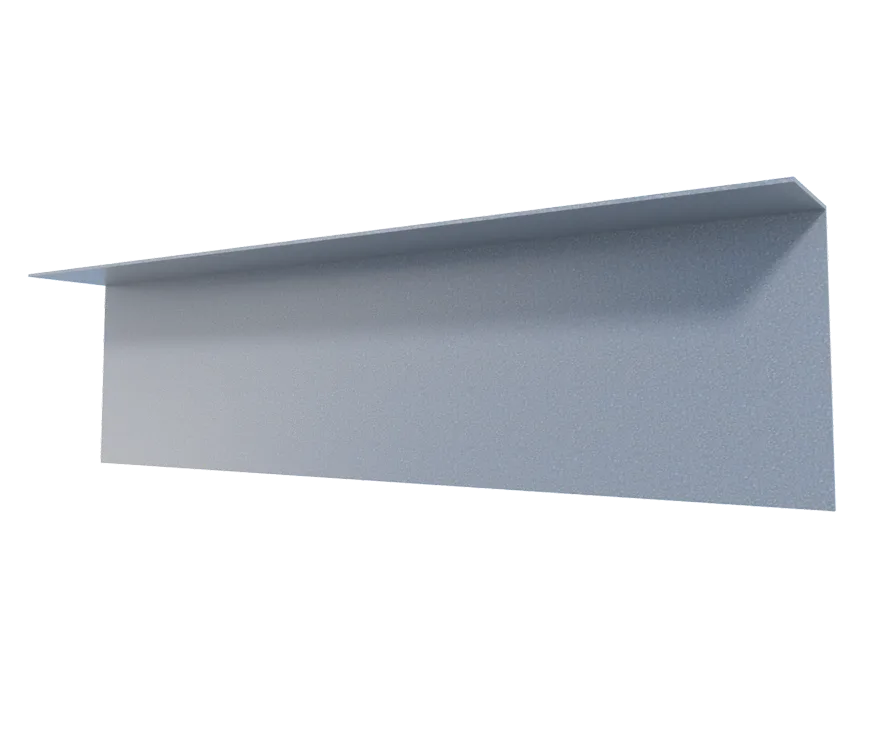

Left side of StiffClip LS

StiffClip® LS Downloads

Tech Sheet

LSF Specification

Specification

Detail DWG

BIM Object

StiffClip® LS Applications

The attachment of StiffClip LS to the primary structure may be made with PAFs, screw/bolt anchors or weld and is dependent upon the base material (steel or concrete) and the design configuration.

StiffClip® LS - Roof Ridge Connection

StiffClip® LS - Roof Ridge Connection

StiffClip® LS - Strut - Structural Bypass Slab

StiffClip® LS - Strut - Structural Bypass Slab

StiffClip® LS -Manard Truss Connection

StiffClip® LS - Strut - Mansard Truss Connection

Installation Instructions

  1. Attach StiffClip to structural member using approved fastener method.
  2. Fasten stud to clip with approved number of screws. For quicker installation, attach from thin to thick material.

Section Properties

StiffClip® LS < 20" Length
StiffClip® LS > 20" Length
Section Properties
Area (in²)
0.322
0.323
Section Properties
Iₓ(in⁴)
0.341
0.308
Section Properties
Iᵧ(in⁴)
0.057
0.055
Section Properties
Rₓ(in*)
1.029
0.978
Section Properties
Rᵧ(in)**
0.419
0.413
Section Properties
Sₓ(in³)
0.168
0.198
Section Properties
Sᵧ(in³)
0.046
0.046

Load Table Notes

  • StiffClip LS resists axial tension and ocmpression loads.
  • Allowable design loads may be calculated based on the section properties shown above.
  • Lengths greater than 20″ incorporate a stiffening lip to increase compressive strength.
  • For powder actuated fasteners, fasten within 3/4″ from the angle heel centerline of the 1-1/2″ leg.
    * Rₓ = Radius of Gyration about x-x axis.
    ** Rᵧ = Radius of Gyration about y-y axis.
